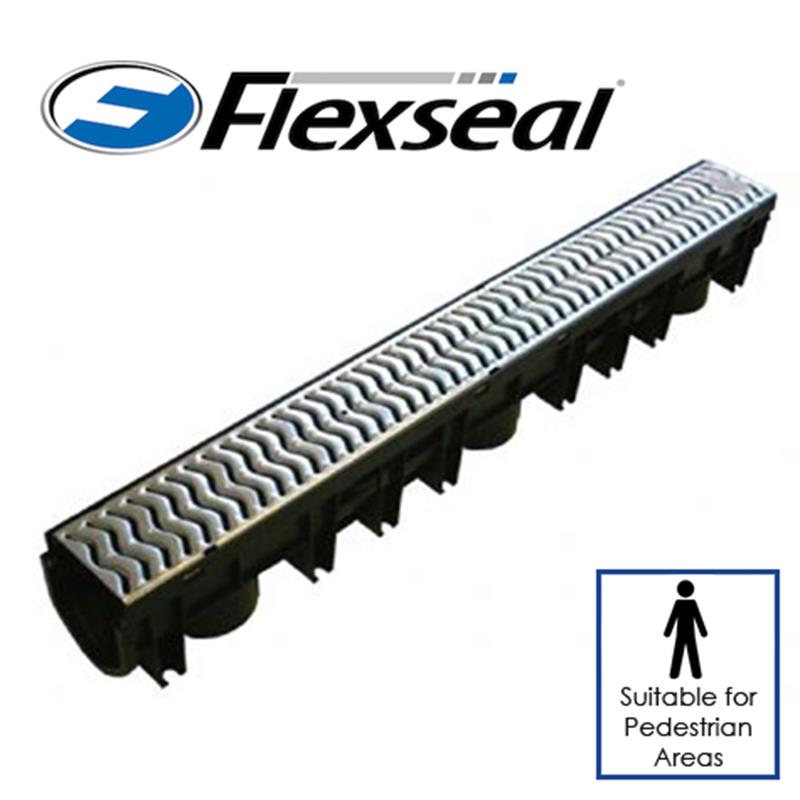

Storm Drain Drainage Channel with Galvanised Steel Grate 1m

StormDrain Plus which is manufactured by Fernco, is a unique and easy to install surface water channel drainage system for a domestic environment, providing a complete solution for the collection and dispersal of surface water. This domestic channel drain is supplied with galvanised steel grating, featuring a heelguard design built into the grate with health and safety in mind. With a Load Class A15 its suitable for driveway and pedestrian applications.

Each channel is 1000mm in length, 120mm wide and 130mm deep overall. The internal depth of the channel base is 87mm.There is a choice of outlet available, either by selecting one of the three vertical outlets on each channel base designed to fit directly into 110mm plain ended drainage pipe and fittings or by purchasing the horizontal end outlet.

Using the corner unit in conjunction with the channel provides a flexible system for most applications such as driveways and patio areas where changes of direction are required.

110mm Drainage Pipe and fittings are available here.

Price Options

Code Description Brand Price Qty
Black (Plastic Channel) Galvanised Grate STDP1000G (S10286601S) Black (Plastic Channel) Galvanised Grate Fernco £15.52 inc VAT
£12.93 ex VAT

Technical Information

Manufacturer: Fernco
Product Code:  STDP1000G
Accreditation: BS EN 1433:2002 Load Class A 15
Material: Plastics – Recycled Polypropylene. Glavanised Steel Grate
Length: 1000mm
Width: 120mm
Depth: 130mm
